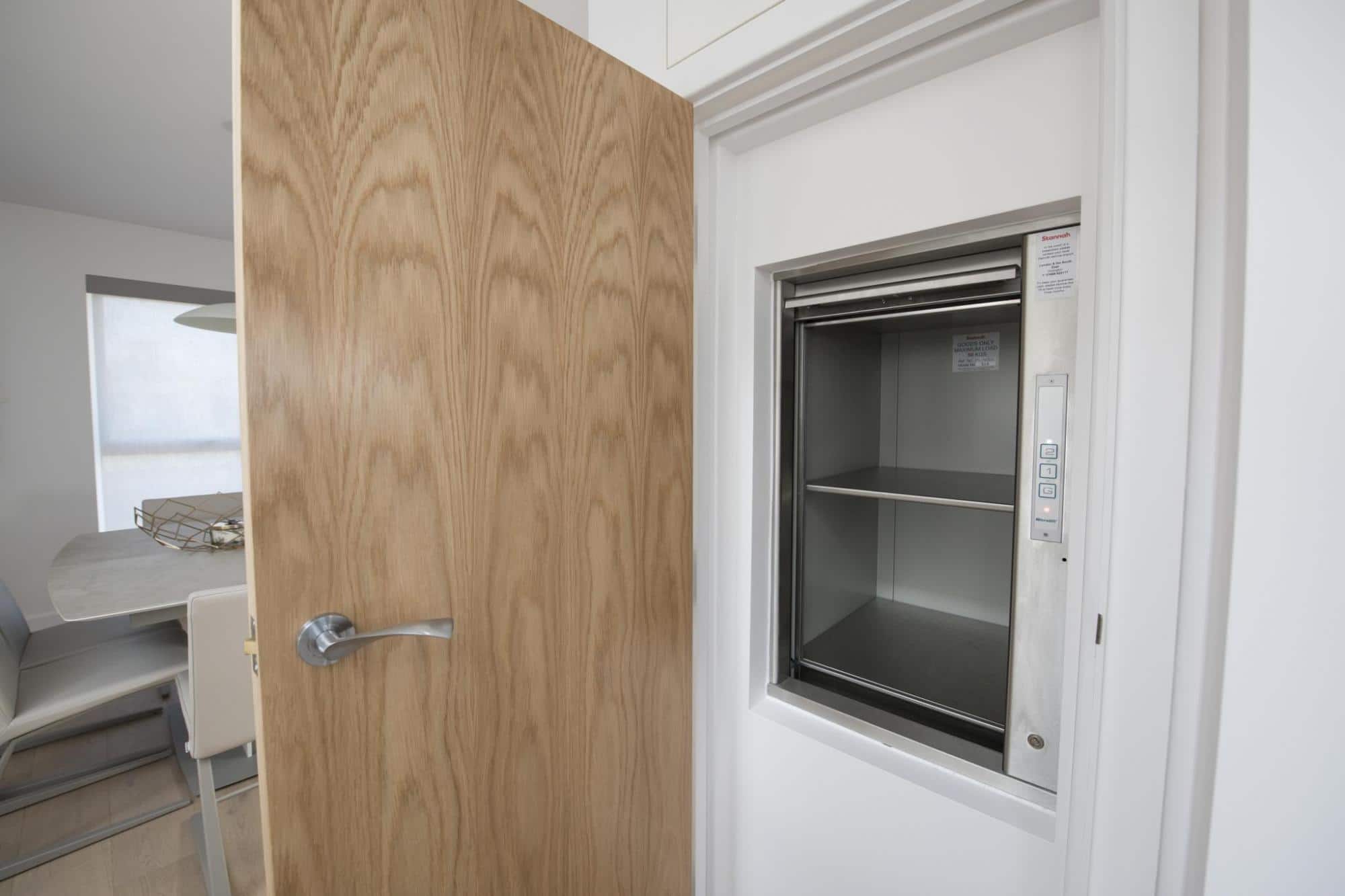

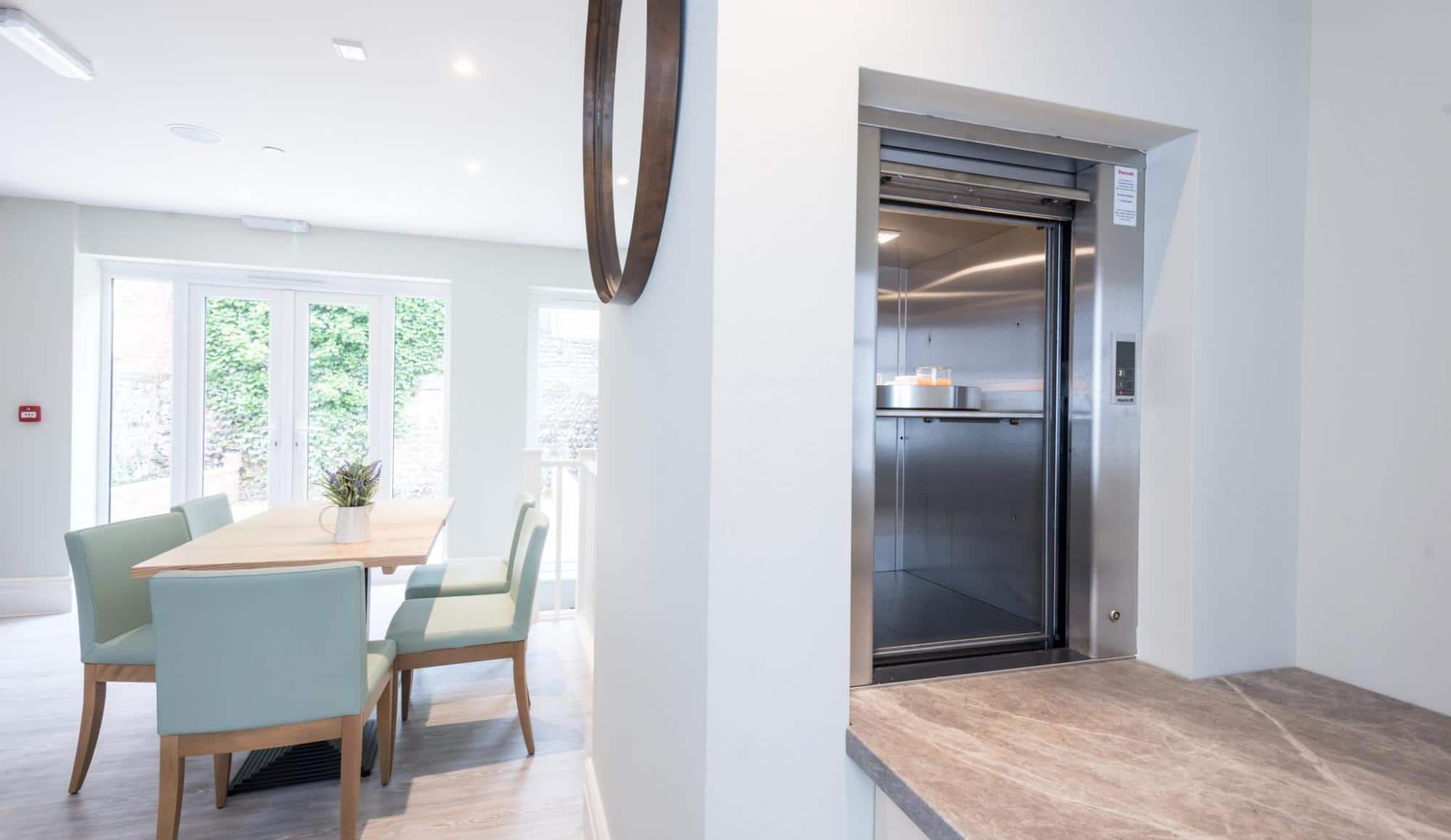

Gartec Dumb Waiter

Gartec service lifts often called dumb waiters, are a small-load goods lift for transporting anything from documents, food and laundry to goods, equipment and small trolleys. Often seen in hotels, libraries, kitchens and restaurants, service lifts help reduce manual handling.

About

The Gartec Service Lift (dumb waiter) is a simple, durable small goods lift, usually at waist/serving height. An extra quiet motor and wipe-clean surface makes it perfect as a serving lift for hotels and restaurants and the supporting frame means quick installation.

View brochure

Dumb waiters, or service lifts, are a small-load goods lift for transporting anything from documents, food and laundry to trays, equipment and small trolleys. Commonly these are found in hotels, restaurants and pubs. Our Service Lift/Dumb Waiter is a simple, durable solution. An extra quiet motor and wipe-clean surface makes it perfect as a serving lift for hotels and restaurants. The supporting frame system means quick and easy installation with no motor room or load bearing shaft required – helping you to get back to work faster. The Gartec service lift can take loads up to 150kg. Read more about our goods lift range.

Gartec Service Lift: Key Features

  • Up to 12 stops (20m)
  • Up to 24 entrance points
  • Internal or external installation
  • Load rated from 50-100kg
  • Rise and fall shutters or hinged doors
  • Shelving options
  • Top or bottom drive positioning

The Gartec Dumb Waiter uses a self supporting steel structure which is erected in just a day or two, with minimal building works on site and no load bearing shaft. You can enclose the structure to suit the surroundings. A counter balance drive system makes the Gartec dumb waiter more energy efficient without a reduction in power.

Gartec Service Lift Types

Gartec offer 3 main types of dumb waiter/service lift:

  • Standard models
  • Double models, with a bank of 2 dumb waiters
  • Bottom drive models, reducing headroom requirements

Double bank versions of the dumb waiter are great for laboratory lifts or food service lifts where contamination or temperature need controlling. If you would like a double bank, a wall will need to be created on site to separate the shafts.

You can also position a Gartec Trolley Lift beneath the service lift in the same shaft.
