Gartec Platform Stairlift

Economical and space saving, a platform stair lift is a very popular and versatile access solution for wheelchair users. The platform stairlift is similar to a normal stair lift, but with a platform for wheelchairs rather than a seat. The wheelchair user rolls onto the platform, safety bars lower, and a constant pressure joystick controls movement along the staircase.

Download Brochure

Gartec Platform Stairlift
Download Brochure

Lift Enquiry

Product Pages Enquiry Form
This field is for validation purposes and should be left unchanged.

Features

Straight stairways for wheelchairs

3 platform sizes

225kg load rating (wheelchair user)

Indoor and outdoor

1 day installation

User or attendant controlled

Safety sensors stop when obstructed

Barrier arms and ramps for safety

About

A platform stairlift offers simple access to upper floors for wheelchair users, whilst taking up very little space when folded away out of use. Discrete, economical and space saving, a platform stairlift is a very popular and versatile access solution. The Gartec platform stairlift is suitable for use internally and externally, making it ideal for use as a home lift and commercial lift for wheelchairs.

View brochure

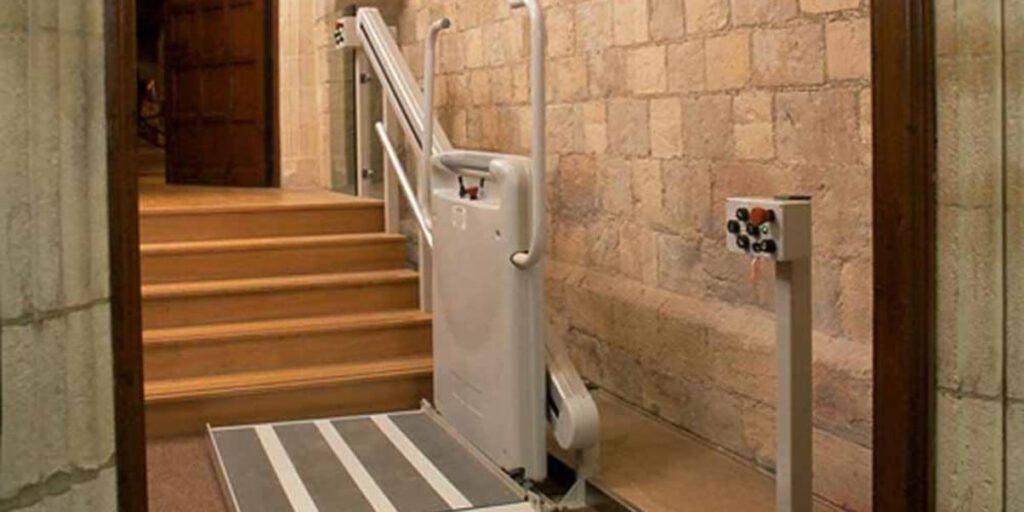

a gartec platform stair lift in a castle hallway

Specification



Type of Lift

Scissor Platform Lift (box profile mechanism)

Environmental

Internal or External

Drive System

Hydraulic cylinder system

Power

3ph, 380-500v, 50Hz as standard
Remote or integral power pack

Motor

24v

Rated speed

0.03 – 0.15m/s

Rated load

500 – 10,000kg

Number of stops

2

Controls

Deadman press to run control
Hand held or wall mounted

Compliance

IP54 – electric & hydraulic system
ISO 9000 accreditation, CE marked

Safety

Safety edge perimeter bars

Safety spacing – no trapping points

Armoured hydraulic hoses with burst valves

Overload protection – tested to 130%

Mechanical props/locks for maintenance

Hydraulic cylinders with high pressure seals

Microprocessor controlled

Adjustable flow control valve

How Platform Stair Lifts Work

A constant pressure joystick controls the motion of the platform stairlift, operated by the wheelchair user.

Alternatively an attendant can call and send the platform stair lift using a ‘wander-lead’. The barrier arms must be fully lowered and ramps on either side of the platform stairlift raised before operation, giving safety and security as a wheelchair stairlift.
