Up to 13m (6 stops) with up to 3 doors per floor

2 platform lift sizes

75mm pit or ramp

No head room, machine room or pump box

Quiet and energy efficient lift

Internal wall designs and shaft RAL colours

8 flooring options

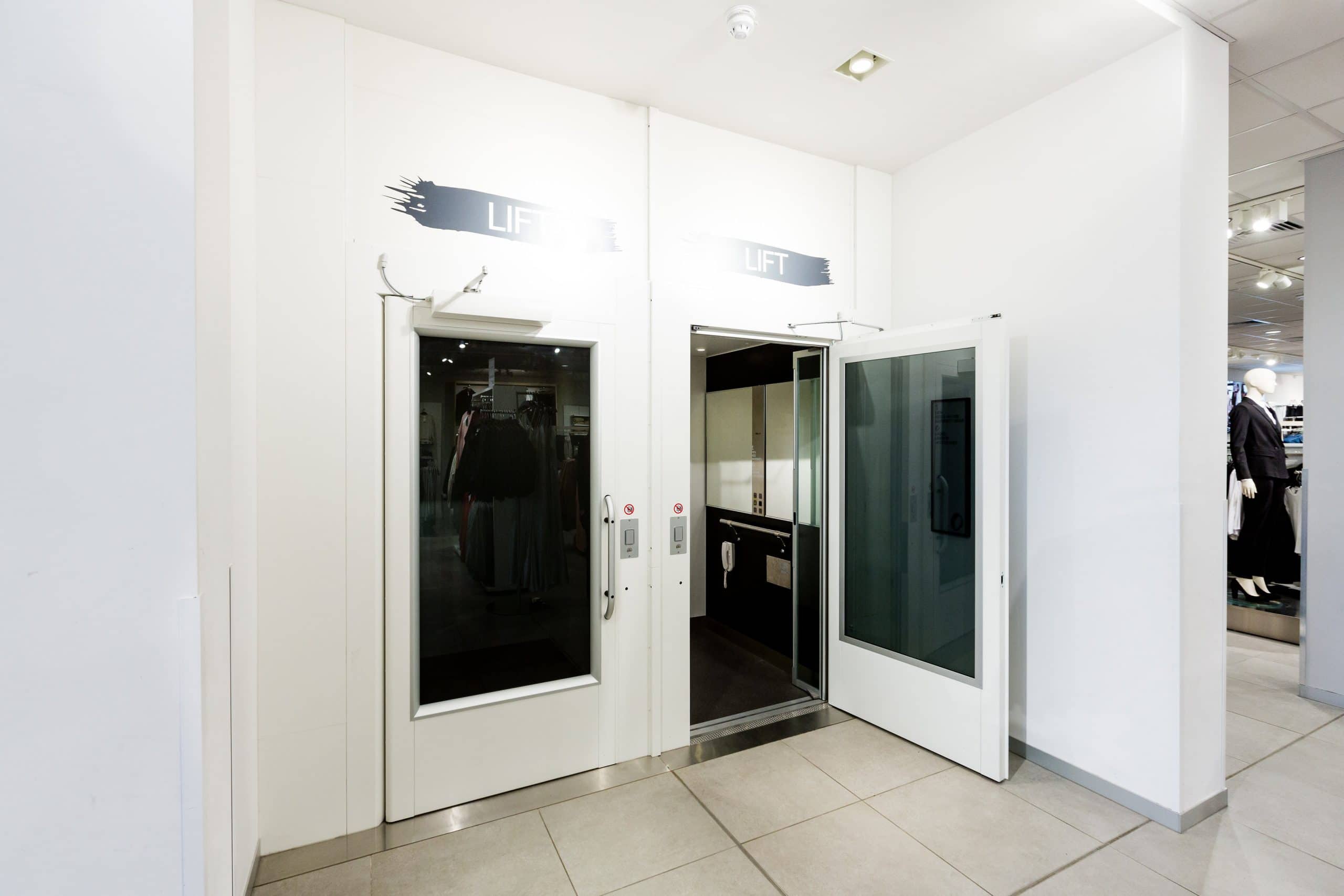

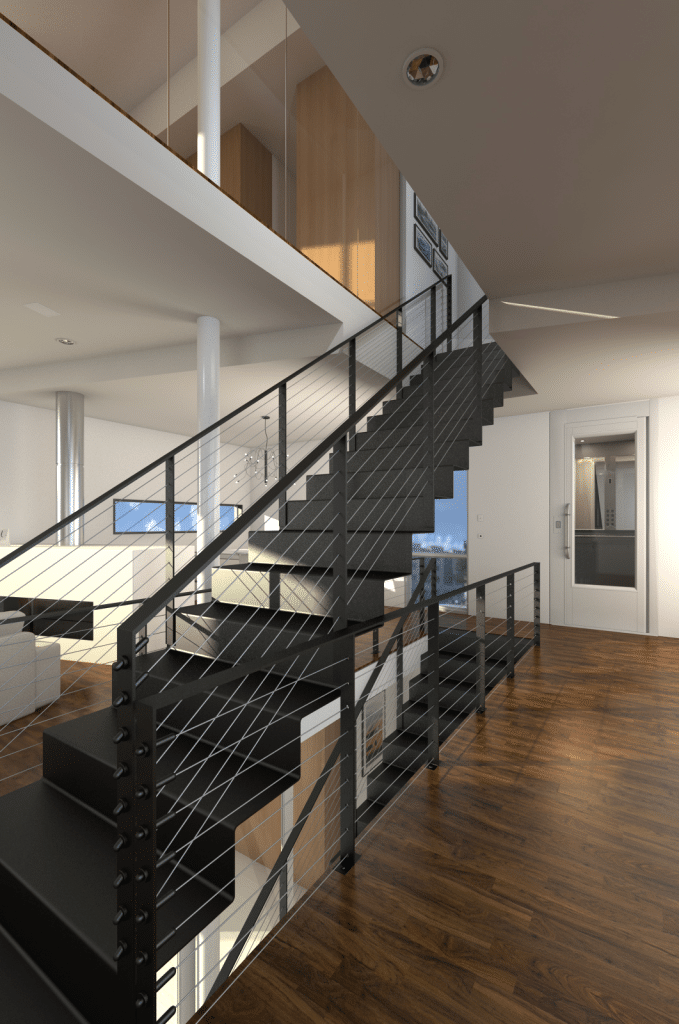

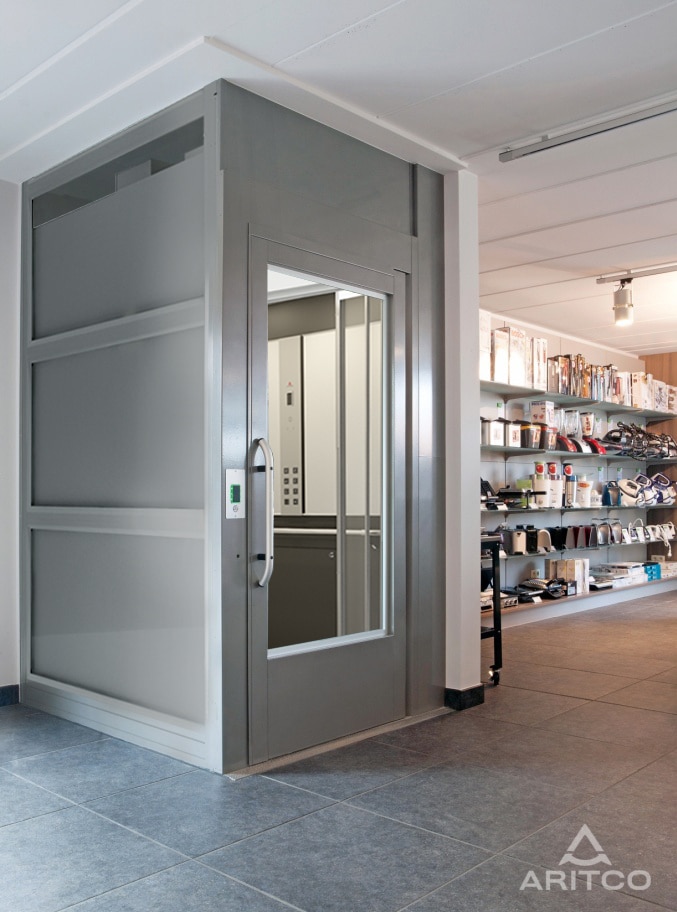

The Aritco 9000 enclosed cabin lift is a simple, cost effective and efficient direct replacement for a conventional lift, combining the best of both worlds and making it ideal for the accessibility and disability markets. The Aritco 9000 uses a modular structure to reduce delivery and installation time, needing only a load bearing footprint and no major building works on site.

The Aritco 9000 cabin platform lift is completely contained within the supplied lift shaft, and operated using our patented nut & screw technology, with a mast running behind the platform. The lift doesn’t require a machine room or pump box housing, meaning a one off installation will solve access needs immediately. Operation of the lift is through a single touch button on the platform, and for calling the lift to the floor.

View brochure

Specification




Drive System

Self-sustaining patented screw/nut system

Rated speed

0.15m/s

Landing control

One touch call

Platform control

One touch run

Technical Compliance

European machine directive 2006/42/EC

Rated load

400 kg/5 persons

Number of stops

Max. 6

Number of doors

Max. 2 doors per floor

Pit / Ramp

75 mm pit (or 75mm ramp)

Environment

Indoor only

Power

3-phase, 400V, 50Hz, 18A supply

Emergency lowering

Automatic lowering from car

Control supply

24 V

Motor

3.0 kW

Measurements




Cabin Sizes (WxDxH)

1000 x 1400 x 2100mm
1100 x 1400 x 2100mm

Structural Opening Width

Cabin width +465mm

Structural Opening Depth

Cabin Depth +230mm

Headroom Req.

2400mm

Travel height

2150-13000 mm

Doors B Side (opposite mast)

+25mm on all width dimensions

Enclosed Cabin Platform Lift or Conventional Lift?

The Aritco 9000 commercial lift brings together great technological advancements to give a conventional passenger lift feel, helping users to feel more secure in a recognisable environment – whilst offering a shorter lead time and much lower cost.

  • Single touch buttons throughout
  • Outer and inner doors
  • Enclosed cabin – the walls move with the passenger/platform

HOW DO ELECTRIC PLATFORM LIFTS WORK?

Vertical platform lifts are contained within a shaft. This shaft has guide rails along two corners of the shaft which help to guide the carrier, which is generally an L shaped platform attached to a mast. When using an open platform lift, the walls remain in the same place as the platform raises or lowers.

There is a wide range of electric, hydraulic, and mechanical platform lifts, including enclosed cabin lifts, industrial vertical platform lifts, and even hidden platform lifts. Cabin platform lifts work in the same way as normal platform lifts but, rather than having an L shaped carrier, the platform is contained within a box to give the feel of a conventional lift.

In order to use an open platform lift, applying continuous pressure to the up or down buttons will allow the user to reach their destination. From the outside, using a single touch button will call the lift to the floor. For enclosed cabin lifts, rather than having to apply continuous pressure, a single touch button will be found inside that can be used to bring the user to the correct floor.

Our ARITCO 9000 cabin lift is most common in gyms, hospitals, retail and commercial buildings, but can be tailored to suit any space. All our commercial lifts are supplied with a 12-month warranty as standard, and we offer a range of maintenance and service packages, which can be tailored to suit your specific requirements.
