Gartec 8000 Hydraulic Cabin Stretcher Lift

The Gartec 8000 is a compact hydraulic lift system with the look, feel and style of a conventional passenger lift but reduced cost, time and maintenance. With stretcher lift / bike lift sizes, it is ideal for hospitality and medical locations as well as car park lifts and similar, the 8000 is a versatile commercial access option.

About

The Gartec 8000 is our hydraulic lift option, providing a 500kg lifting capacity, it is the ideal size for a stretcher or bike use. Even with a hydraulic system, the small 120-140mm pit and minimal headroom mean it will fit in a much smaller space with a high capacity. Easy to install in your own shaft, or with its own supporting structure, the Gartec 8000 offers flexibility in commercial access. Unlike many hydraulic systems, the 8000 doesn’t require a full machine room – just a self-contained ‘power pack’ unit within 9m of the lift.

View brochure

Safety Features

Safety is built in with the Gartec 8000. With an autodialler and alarm button as standard, as well as a battery backup and emergency movement operation unit for external control, passengers travel in comfort. Overload protection is fitted as standard.



Optional Features

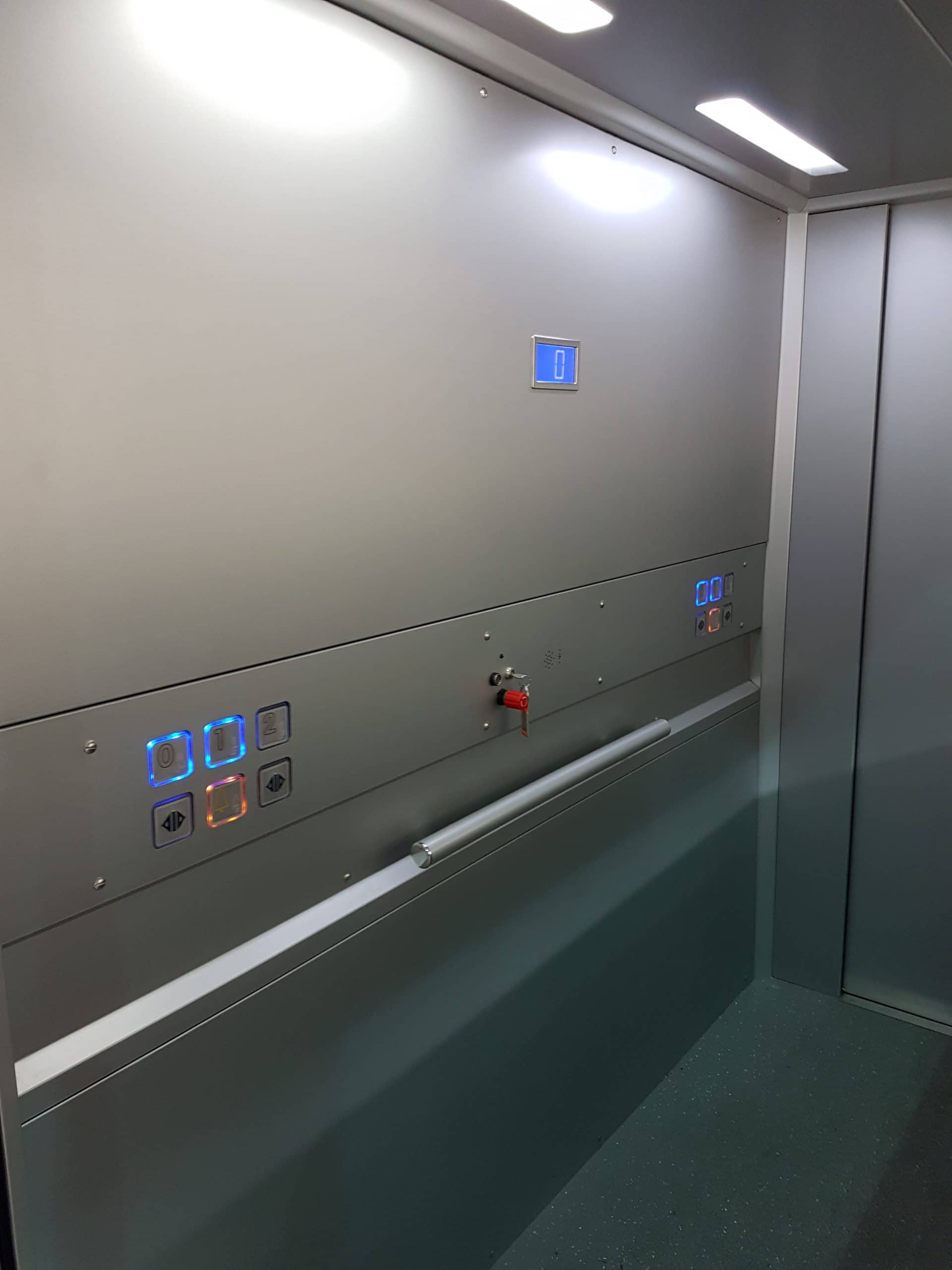

Choose coloured panels, glass or stainless steel for the structure, doors and shaft panels, and a range of safestep flooring choices. A half- or full-height mirror and optional lighting designs can be added to the cabin too.

A range of telescopic doors include 3 and 4 speed (4 speed is centrally opening), with the option of 1 or 2 hour fire rating. Take control of access in sensitive locations with a fully programmable i-button control system for landings and floor selection. For more options please download our brochure.

Specification

Type of Lift Hydraulic cabin stretcher lift
Environment Internal
No of Floors 2-5
Rated Speed 0.15m/s
Capacity 500kg
Drive System Direct acting hydraulic ram
Headroom 2700mm
Controls One touch control
Power required 1-phase 230V 50 Hz/9 A/25 A slow
Emergency Backup External emergency lowering

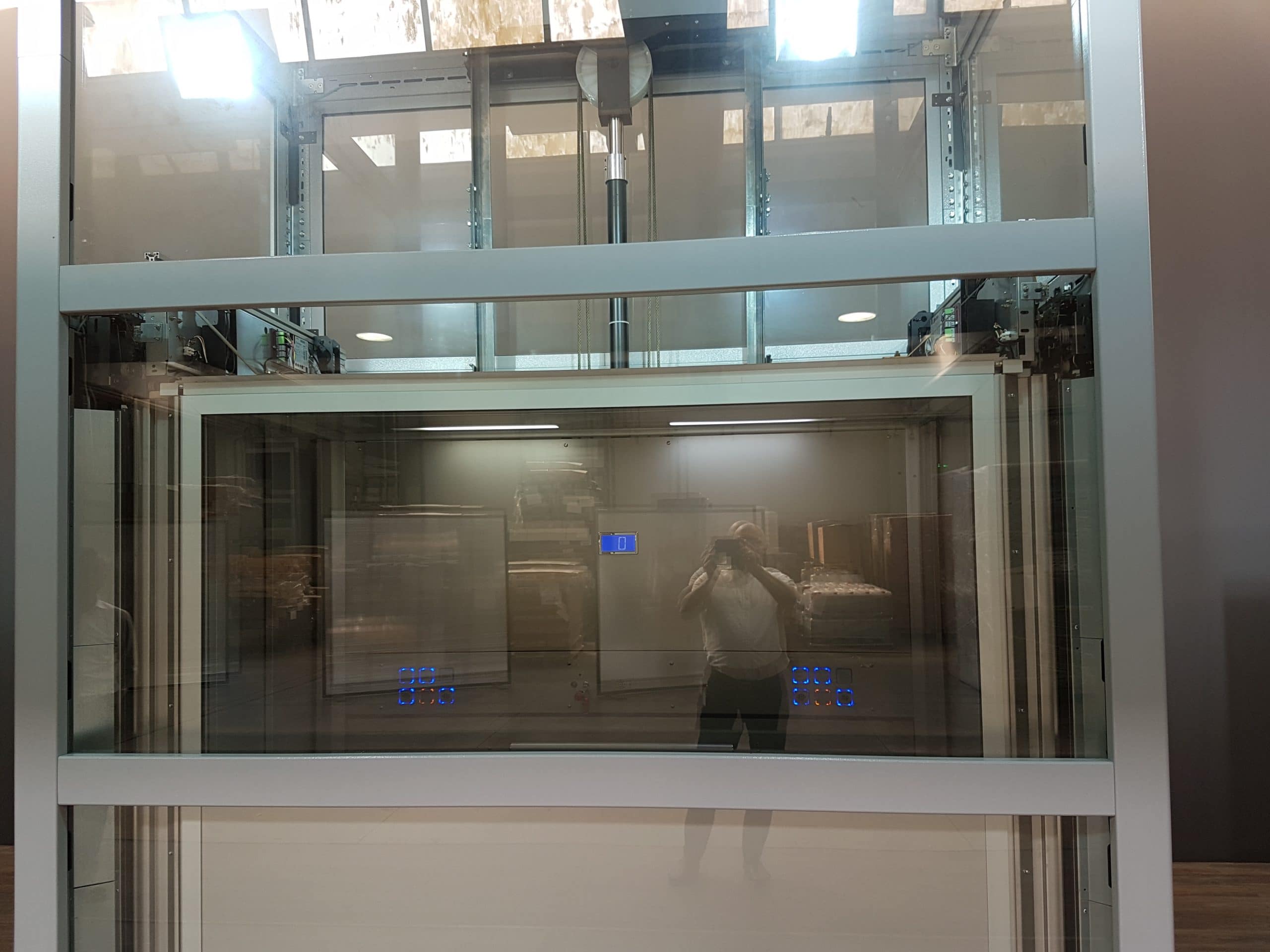

Shaft Masonry / Concrete by others
or self supporting steel structure

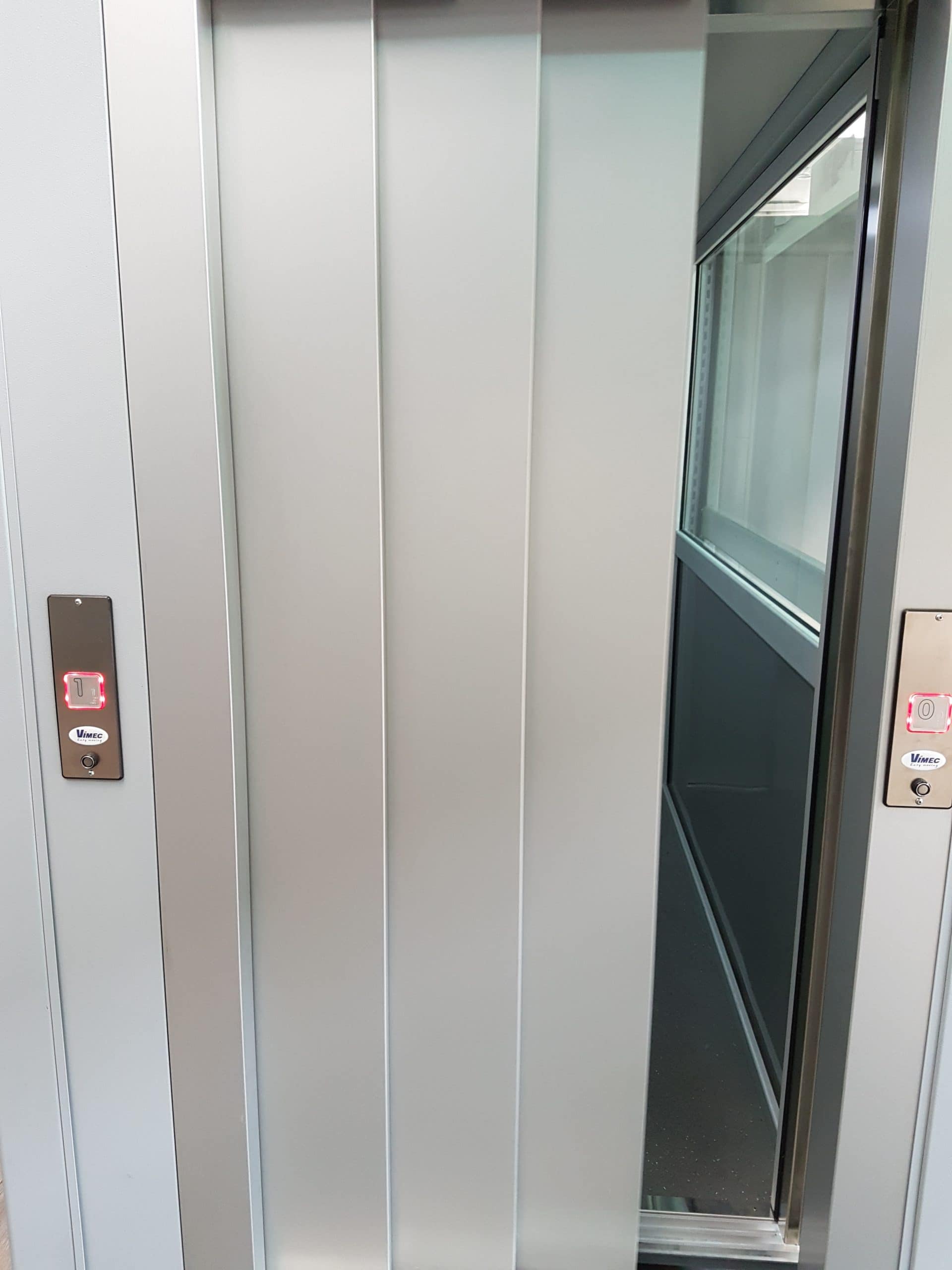

Doors 3 or 4 stage telescopic door
Single or through car configuration
Compliance CE Marked
EN81-70 / BS6440 / BS8300
Machinery Directive
Building Regulations Part M



Measurements

Cabin size 1100 x 2200mm
Travel height 250 – 8,500 mm
Shaft size (Internal) 1410 x 2475mm (Single entry)

1410 x 2640mm (through entry)

Door size 900mm wide
2,000mm high as standard
Pit / Ramp 120 – 140mm
Power Pack Size (wxdxh) 470 x 750 x 1680mm
Located within 9m of lift
