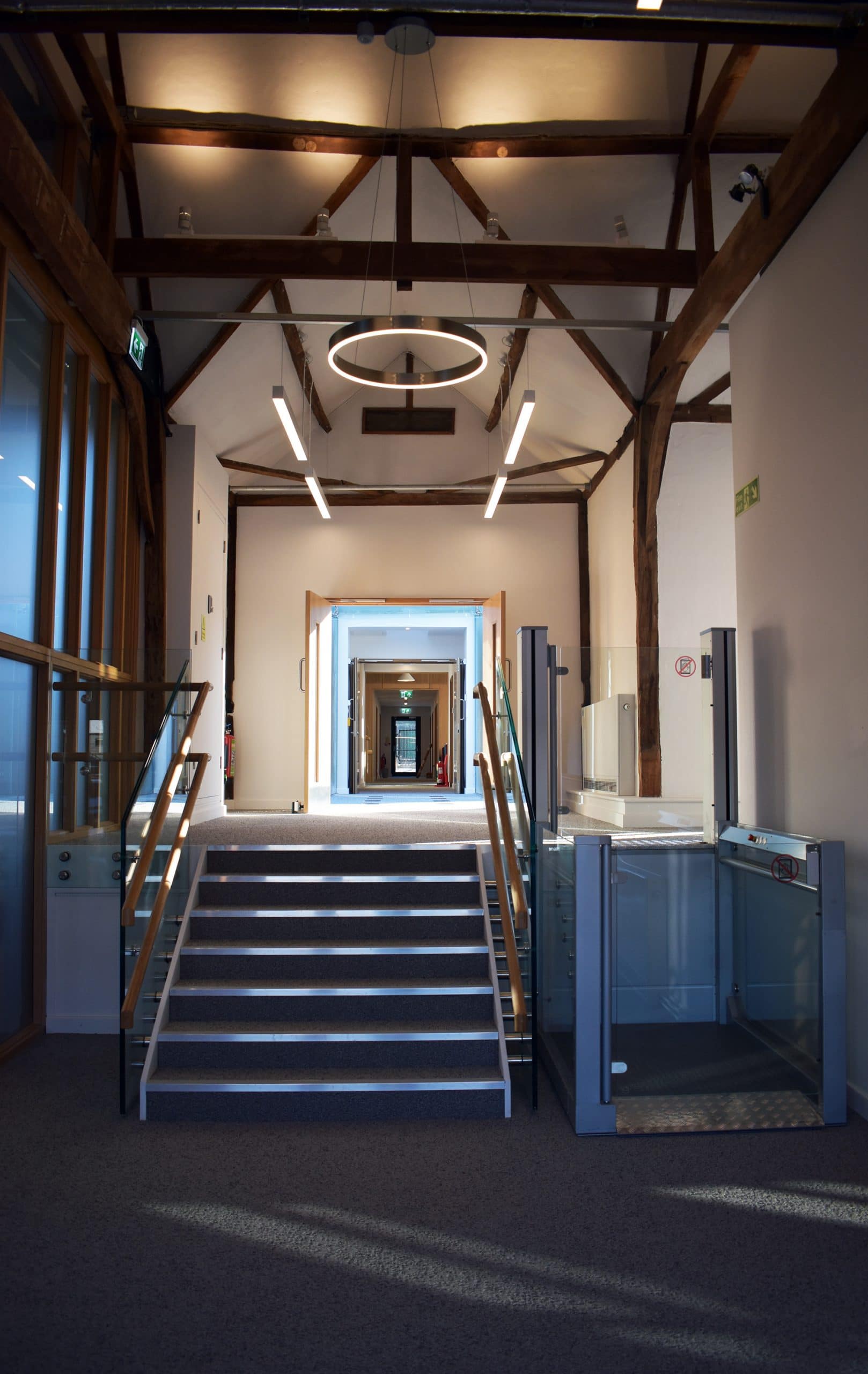

Gartec 3000 Step Lift

Accessing a building independently is easy with the Gartec 3000 Step Lift. An ideal short rise lift is a perfect alternative to a ramp where space is limited. The 3m travel and simple, compact system gives you maximum efficiency, and we offer a selection of platform sizes and finishes to suit all environments and budgets.

About

Accessing a building independently is easy with the steplift. An ideal short rise lift, the platform steplift is a perfect alternative to a ramp where space is limited. The 3m travel and simple, compact system gives you maximum efficiency, and we offer a selection of platform sizes and finishes to suit all environments and budgets.

View brochure

The Gartec Platform Steplift offers a reliable and compact solution for wheelchair access, as a domestic lift or commercial lift. Our Platform Steplift provides a convenient and space-saving access lift where constructing a ramp for access is not suitable, and a platform or conventional lift is too large or unsightly.

Benefits

  • Quiet and efficient belt drive system
  • Low maintenance and operating costs
  • Minimal building work & quick installation from 1 day
  • Wide range of finishes, with steel or RAL colours

Contact Us

Features

  • Travel from 600mm – 3000mm
  • Illuminated constant pressure controls
  • Remote call station
  • Pit option for internal use
  • No need for an enclosure or support tower

View Brochure

Safety

User safety and comfort has been a fundamental part of the design for the Gartec 3000 Step Lift, with a full platform safety edge, emergency battery back up, proximity sensors, interlocked gates and many more for extra safety.

Specification

Rated Load 400kg
Environment Internal or External
Speed 0.15m/s
Power req. 1-phase, 220-240V, 50Hz, 16A
3-phase, 380-400V, 10A
Drive Belt driven
Machine room Integral to guide rails
Controls Constant pressure push buttons (illuminated)
Option for single touch landings
Gate Frameless half height gate
No. Stops 2 stops with 1 door per floor
Operating Temperature -10 °C to +40 °C
Finish White as standard
Any RAL or brushed stainless steel finish options

Measurements

Platform Size 900 x 1400mm
1000 x 1400mm
1100 x 1400mm
Overall Footprint* 1200 x 1639mm
Travel Distance 600mm – 3,000mm
Gate Height 1100mm
Pit Depth (optional) 75mm

Please Note: different arrangements may require side clearance. Please get in touch with specification for site specific measurements.
