Our Guide to Passenger Lift Dimensions
We offer a wide range of passenger lifts for home and business owners. Each model is made to fit your space and purpose seamlessly, whilst providing optimal accessibility and mobility to all passengers. If you are considering a new elevator system for the workplace or a platform lift to upgrade your home, you want to be sure your desired model will fit in the space without being cumbersome, and blend well with the existing architecture.
The best thing about our range is that most can be installed with minimal building work necessary, and selected models can be customised to fit your preferred dimensions. Others come in a fixed, reliable build – in this article, we will take you through our range of passenger lifts for domestic and commercial purposes, and both their platform and shaft dimensions.
Domestic Passenger Lift Dimensions

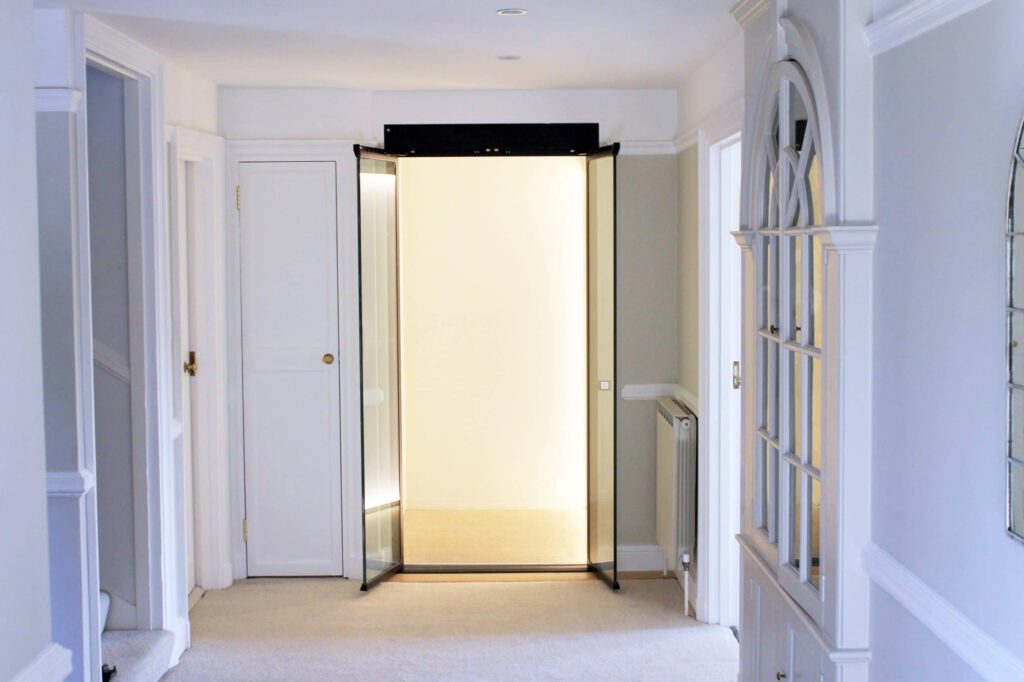

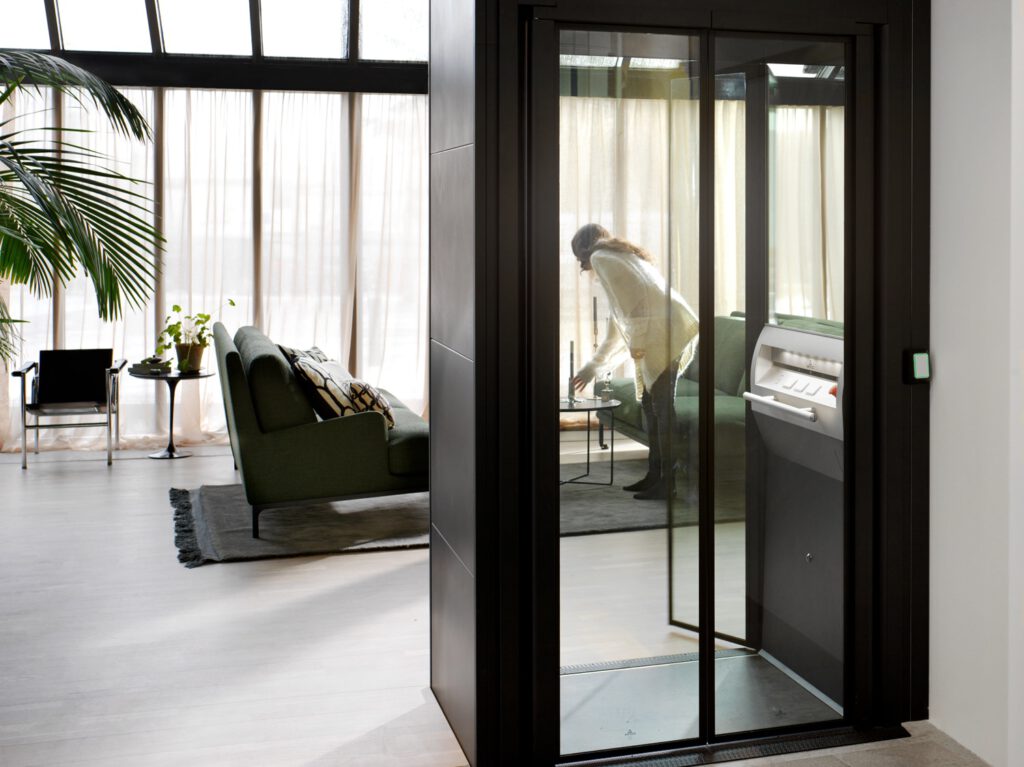

Artico Home Lift
This classic Artico model is the perfect blend of form and function, with a stunning exterior for a truly stylish inclusion in your home, as well as smooth and reliable hydraulic power. Further technical details.
| Platform Size | Shaft Size |
| 600 x 830 mm | 1011 x 910 mm |
| 1000 x 830 mm | 1411 x 940 mm |
| 1100 x 830 mm | 1511 x 940 mm |
| 1000 x 1200 mm | 1411 x 1310 mm |
| 1100 x 1400 mm | 1511 x 1510 mm |

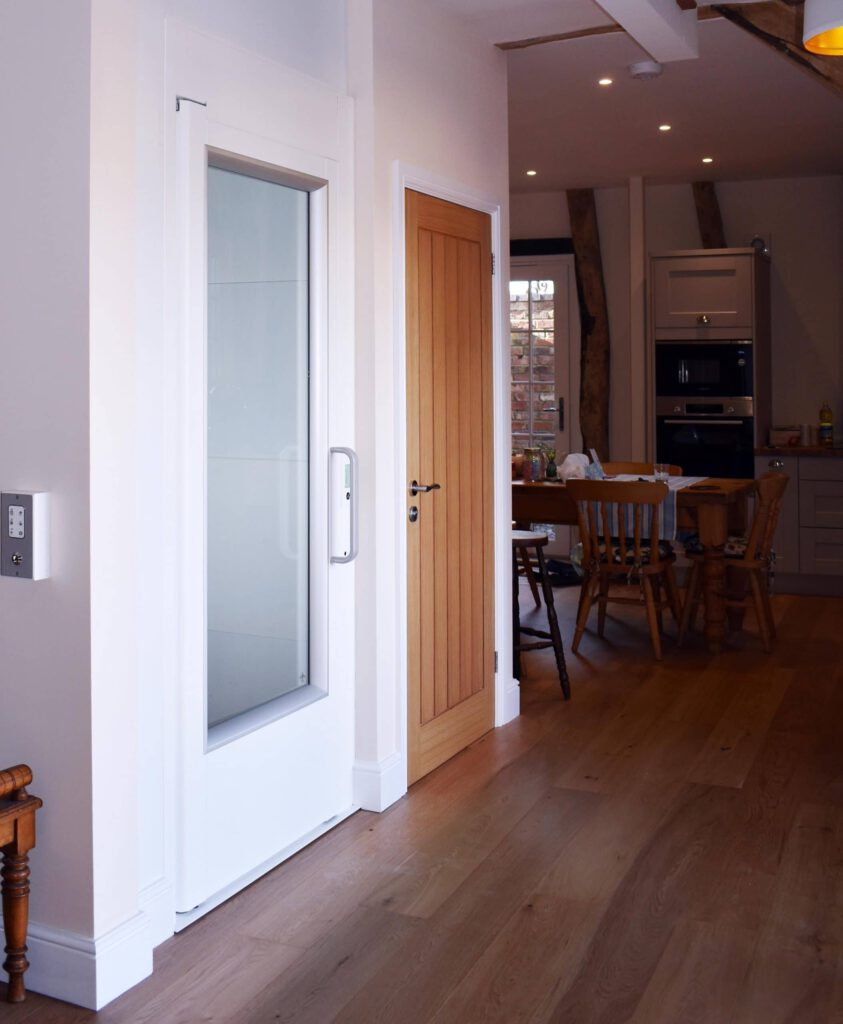

Artico Home Lift Access
Ideal for wheelchair users looking to enhance their mobility at home, or even residential homes eager to improve accessibility for their residents. Further technical details.
| Platform Size | Shaft Size |
| 900 x 1040 mm | 1330 x 1190 mm |
| 900 x 1280 mm | 1330 x 1430 mm |
| 900 x 1480 mm | 1330 x 1630 mm |
| 1000 x 1280 mm | 1430 x 1430 mm |
| 1000 x 1480 mm | 1430 x 1630 mm |
| 1000 x 1980 mm | 1405 x 2130 mm |
| 1100 x 1480 mm | 1530 x 1630 mm |
| 1100 x 1580 mm | 1530 x 1730 mm |
Vimec E20
A home model that achieves the same feel of a traditional elevator in its heavy-duty capacity and professional design, but without the hefty cost and building works. Further technical details.
| Platform Size mm | Shaft Size |
| 800 x 900 mm | 1200 x 1240 mm |
| 900 x 900 mm | 1300 x 1205 mm |
| 900 x 1000 mm | 1300 x 1305 mm |
| 1000 x 1000 mm | 1400 x 1305 mm |
| 900 x 1400 mm | 1300 x 1705 mm |
| 1100 x 1400 mm | 1500 x 1705 mm |
| 800 x 1250 mm | 1200 x 1590 mm |
| 1000 x 1250 mm | 1400 x 1555 mm |
| 1140 x 1400 mm | 1540 x 1705 mm |
Barduva RB150
A brilliant alternative to a sizeable ramp, with an impressive design and powerful engineering, offering full access to wheelchair users. Further technical details.
| Platform Size | Space Requirement |
| 900 x 1400 mm | 1401 x 1760 mm (without gate swings) |
| 1000 x 1400 mm | 1501 x 1760 mm (without gate swings) |
| 1100 x 1400 mm | 1601 x 1760 mm (without gate swings) |
Gartec Platform Stair Lift
For larger stairwells or areas where space might be too restricted for a step lift, the platform stairlift provides safe and reliable access to all wheelchair users. Further technical details.
| Platform Size | Shaft Size |
| 750 x 900 mm | 1090 x 1245 mm |
| 800 x 1000 mm | 1140 x 1345 mm |
| 800 x 1250 mm | 1140 x 1595 mm |
Commercial Passenger Lift Dimensions
Artico Public Lift Access
Our most versatile platform lift, providing quick and quiet access to all passengers and wheelchair users. Further technical details.
| Platform Size | Shaft Size |
| 900 x 1040 mm | 1305 x 1190 mm |
| 900 x 1280 mm | 1305 x 1430 mm |
| 900 x 1480 mm | 1305 x 1630 mm |
| 1000 x 1280 mm | 1405 x 1430 mm |
| 1000 x 1480 mm | 1405 x 1630 mm |
| 1000 x 1980 mm | 1405 x 2130 mm |
| 1100 x 1480 mm | 1505 x 1630 mm |
| 1100 x 1580 mm | 1505 x 1730 mm |

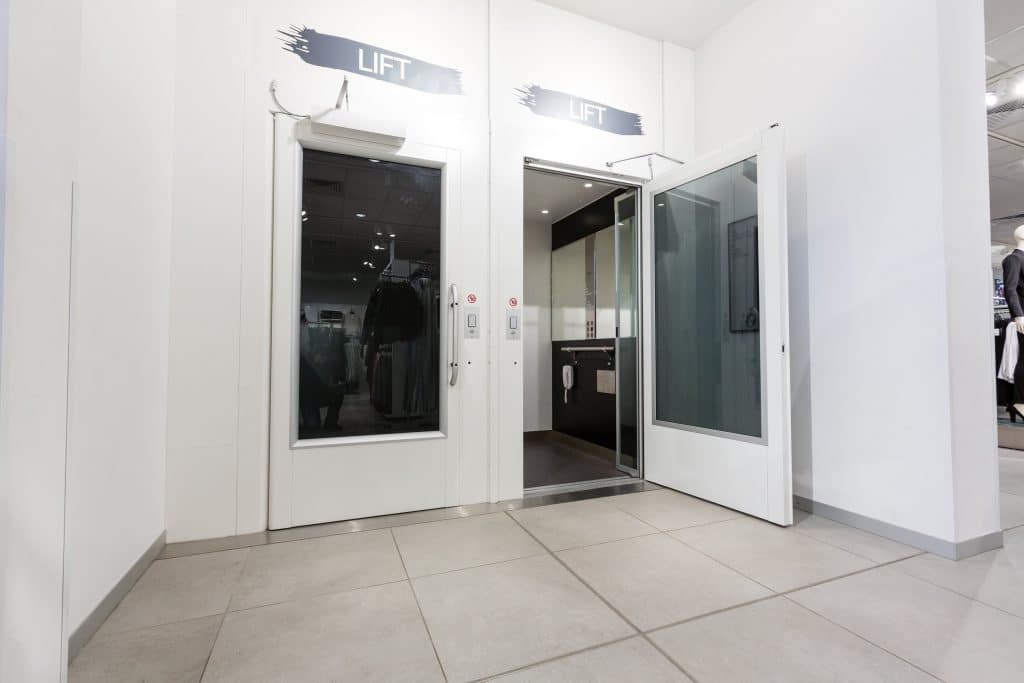

Artico 9000 Cabin Lift
The perfect alternative to traditional lift systems, our 9000 Cabin is a robust and efficient model that provides peak accessibility at a reduced cost. Further technical details.
| Platform Size | Shaft Size |
| 1000 x 1400 mm | 1435 x 1600 mm |
| 1100 x 1400 mm | 1535 x 1600 mm |
ILS 1000 High Capacity Platform Lift
A passenger lift that can carry up to 1000 kg in weight, making it a desirable addition to any location looking to open up accessibility and mobility to their customers, clients, and staff, with the capacity to carry both wheelchairs and beds. Further technical details.
| Platform Size | Shaft Size |
| 1400 x 2500 mm | 1860 x 2610 mm |
| 1400 x 2000 mm | 1860 x 2110 mm |
| 1100 x 2200 mm | 1560 x 2310 mm |
Choose the Right Passenger Lift for Your Space
Selecting the right passenger lift for your domestic or commercial setting will set the bar for optimal accessibility. Our range is vast and varied, with multiple styles and dimensions to choose from, meaning you are sure to find just the right model for your space and ensure equality in mobility for years to come.
